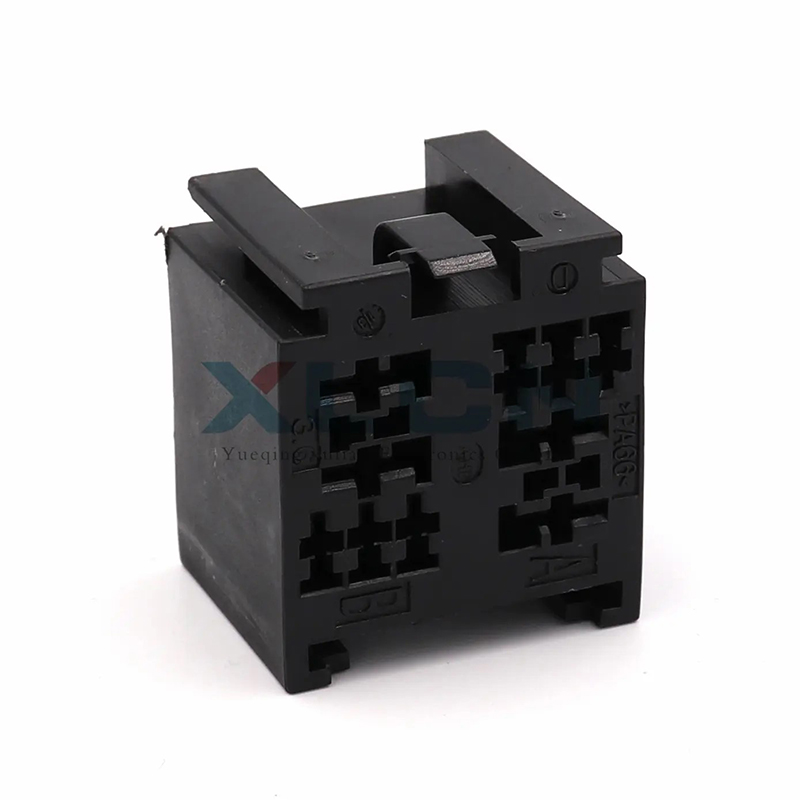

The 185402-2 Automotive Plug delivers standardized connectivity engineered to TE specifications for protected vehicle environments. This established Automotive Plug features a 10-position female interface in durable black thermoplastic, designed for applications prioritizing cost efficiency over environmental sealing. Its proven configuration addresses electrical interconnection needs within non-exposed automotive zones, demonstrating consistent performance across cabin electronics through extended validation.
Characterized by its compact female 10-pin architecture, this design incorporates precision-engineered socket contacts with dual-beam technology for vibration-resistant mating. The interface maintains stable electrical resistance (<5mΩ) while accommodating up to 13A per circuit. Ten discrete positions enable consolidated transmission of power and signals within interior subsystems. Space optimization is achieved through 22.5mm pitch width and 15.8mm mating height, making it effective for overhead consoles, seat modules, and infotainment peripherals with constrained PCB space.
These Automotive Plugs utilize an unsealed construction methodology that eliminates sealing components, achieving significant weight reduction. Optimized for instrument panels and cabin electronics, the design maintains robust performance within -40°C to +125°C operational ranges through advanced material selection. The simplified housing reduces insertion forces while providing mechanical keying to prevent misalignment. Field validation confirms electrical integrity through 5,000+ mating cycles.
Manufacturing employs glass-reinforced poly amide (PA66-GF25) for the black housing, delivering UV stability (>95% color retention after 1,000hrs exposure) and chemical resistance. The material meets UL94 V-0 flammability requirements with minimal thermal deformation. Contacts feature phosphor bronze with selective gold-over-nickel plating, ensuring stable conductivity after humidity aging (85°C/85%RH). Validation per USCAR-2 protocols confirms performance under 28Grms vibration.
As proven TE-specification compliant Automotive Plugs, the 185402-2 series serves cabin electronics requiring reliable 10-circuit performance. The design balances contact reliability (>10N normal force) with space efficiency in temperature-managed environments. The durable black housing maintains aesthetic coherence while providing mechanical protection, supporting automated assembly processes and service life exceeding 15-year durability targets.
